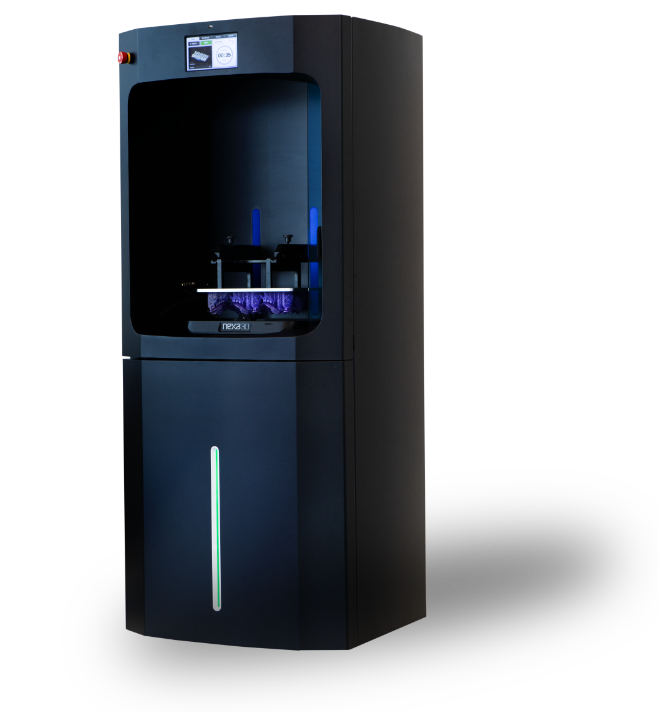

Nexa3D NXD 200

The NXD 200 is the perfect 3D printing solution for high throughput dental applications. With an unprecedented 8.5L build volume measuring 275 x 155 x 200mm (19.8 x 6.1 x 7.8 inch) and patented LSPc technology. This complete 3D printer is ideal for dental resin models, splints, impression trays, occlusal nightguards, and more. The superior speed and workflow is complemented by intuitive interfaces and ease of use, ideal for dental labs.

Help find the ideal 3d printer for my lab

    What additional products are you interested in? (Optional)

    Specs

    • Build Volume 275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch)
    • External Dimensions: 21 x 20x 32 inch (53.34 x 50.80 x 81.28 cm)
    • Internal Dimensions: 15.50 x 10.75 x 25.75 inch (39.37 x 27.30 x6 5.40 cm)
    • Weight: 110 lbs empty (49.89 kg empty)
    • Max Resolution 4K (3840 x 2160)
    • Pixel Pitch 76.5 µm (0.0030 in)
    • Wavelength 405 nm
    • Build Materials UV Curable Plastics: KeyModel Ultra; KeySplint Soft; KeyGuide; KeyTray

    Features

    • Disruptive, modular and scalable Light Engine technology
    • Edge-to-edge uniformity and accuracy
    • High power and light transmission
    • Real-time monitoring, optimizing and diagnostics
    • Print at a speed of up to a model a minute
    • Spacious Build Platform 275 x 155 x200mm
    • 405 nm and 4K Resolution
