Amann Girrbach Matron

    What additional products are you interested in? (Optional)

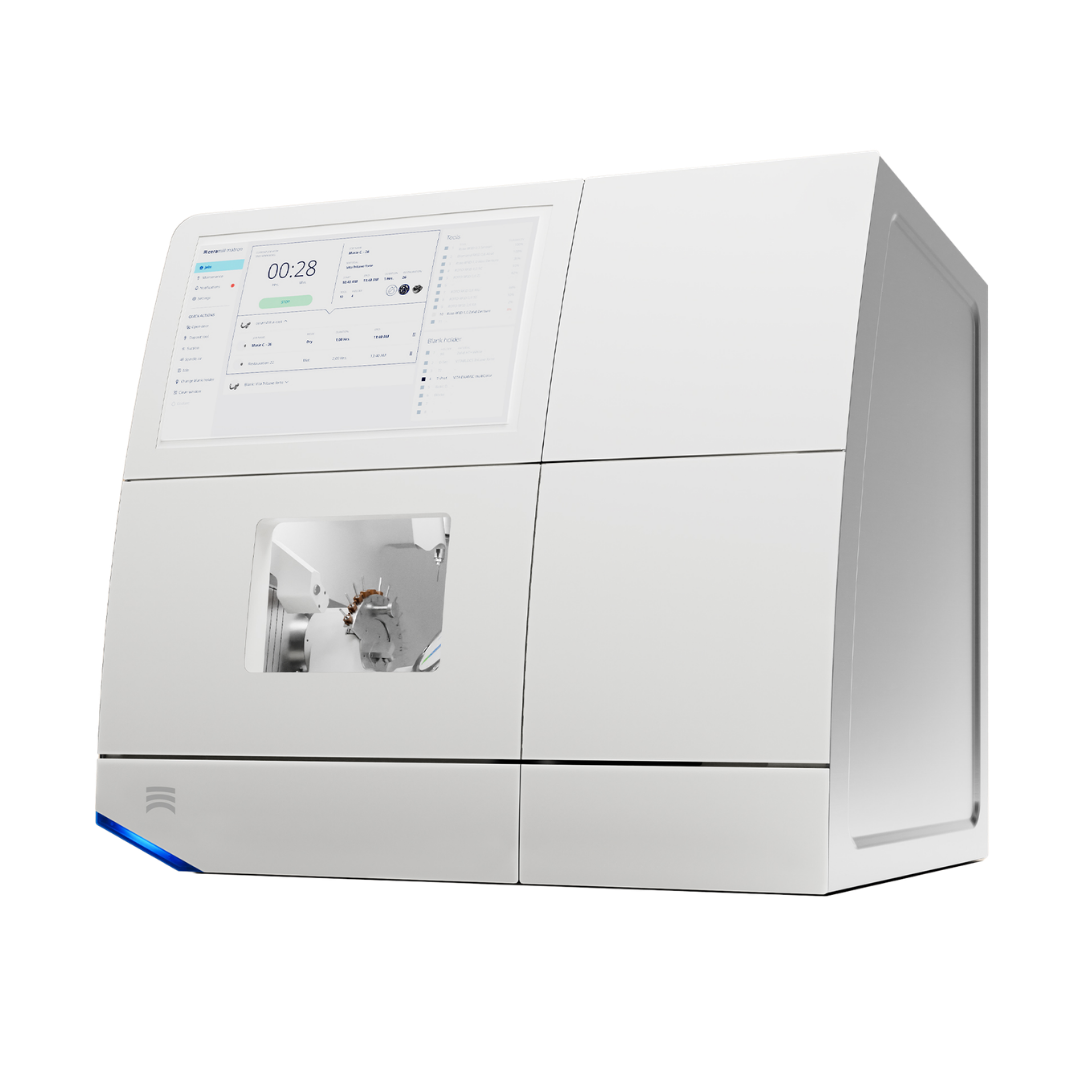

    The Amann Girrbach Ceramill Matron is a high-end 5+3-axis milling and grinding unit built for automated lab production, including in-house CoCr and titanium. Its Vmax arm, 80,000 rpm spindle, 8-fold blank changer and 11-slot SnapMag tool carrier make it ideal for labs that want to run more indications unattended.

    Key benefits:
    • Mill CoCr and titanium in-house
    • Automated production with RFID blank and tool management
    • Sourcing and support through Nowak

    Features


    • 5+3-Axis Milling & Grinding
    • Vmax Arm with 45° A/B Axis Arrangement for Rigidity
    • High-Performance Spindle up to 80,000 rpm
    • 8-Fold Pull-Out Blank Changer with RFID
    • SnapMag 11-Slot Magnetic Tool Carrier with RFID
    • 21.5″ Touch Display with Guided Workflows & Cutter-Wear View
    • HD Camera for Remote Support
    • Industrial Zero-Point Clamping System

    Specs


    • Axes: 5+3
    • Processing: Dry and wet milling and grinding
    • Spindle: Up to 80,000 rpm; 800 W continuous, 1.37 kW peak; 12 Ncm
    • Tool Shaft: 6 mm
    • Tool Changer: SnapMag, 11 positions, RFID
    • Blank Changer: 8-fold, pull-out, RFID
    • Materials: Polymers, CoCr, titanium, glass and hybrid ceramics, zirconia
    • Display: 21.5″ touchscreen
    • Power: 100–230 V, 50/60 Hz; 220 W consumption
    • Compressed Air: 6 bar, 50 L/min
    • Dimensions (D × W × H): 696 × 940 × 850 mm (with blank changer)
    • Weight: 150 kg
