Amann Girrbach Motion Air

    What additional products are you interested in? (Optional)

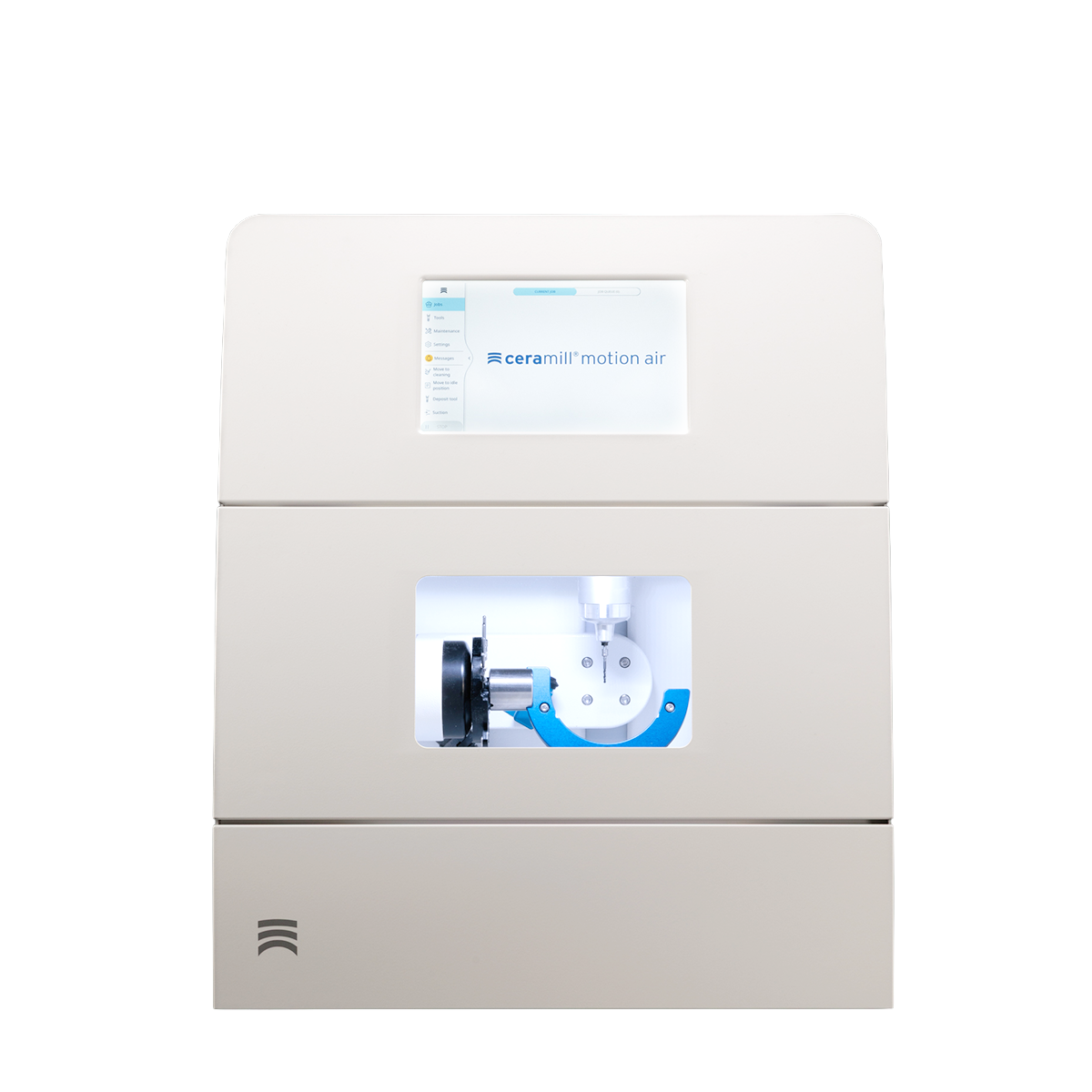

    The Amann Girrbach Ceramill Motion Air is a compact 5-axis dry mill with an integrated compressor, RFID tool management and Wi-Fi monitoring from the Ceramill Go app. It’s ideal for practices and smaller labs that want efficient zirconia and polymer milling in a small footprint.

    Key benefits:
    • Compact, self-contained dry milling
    • Monitor jobs from your smartphone
    • Sourcing and support through Nowak

    Features


    • 5-Axis Dry Milling
    • Integrated Compressor — No External Air
    • RFID Tool Management (10 Tools) or 12-Tool Non-RFID Magazine
    • 10″ Touch Display with Guided Workflows
    • Wi-Fi, Integrated Camera & Ceramill Go App
    • User-Replaceable Spindle
    • Optional Automatic Calibration

    Specs


    • Axes: 5
    • Processing: Dry
    • Spindle: 60,000 rpm; 290 W (800 W max); 13.5 Ncm
    • Collet: 3 mm
    • Tool Magazine: 10 tools (RFID) or 12 tools (non-RFID)
    • Blank Holders: C-Clamp for 98 mm blanks; optional block holder for up to 3 blocks
    • Materials: Zirconia, PMMA, composite, wax, PEEK, VITA ENAMIC
    • Compressed Air: Integrated compressor
    • Power: 100–230 V, 50–60 Hz
    • Dimensions (D × W × H): 470 × 525 × 645 mm
    • Weight: 54 kg
