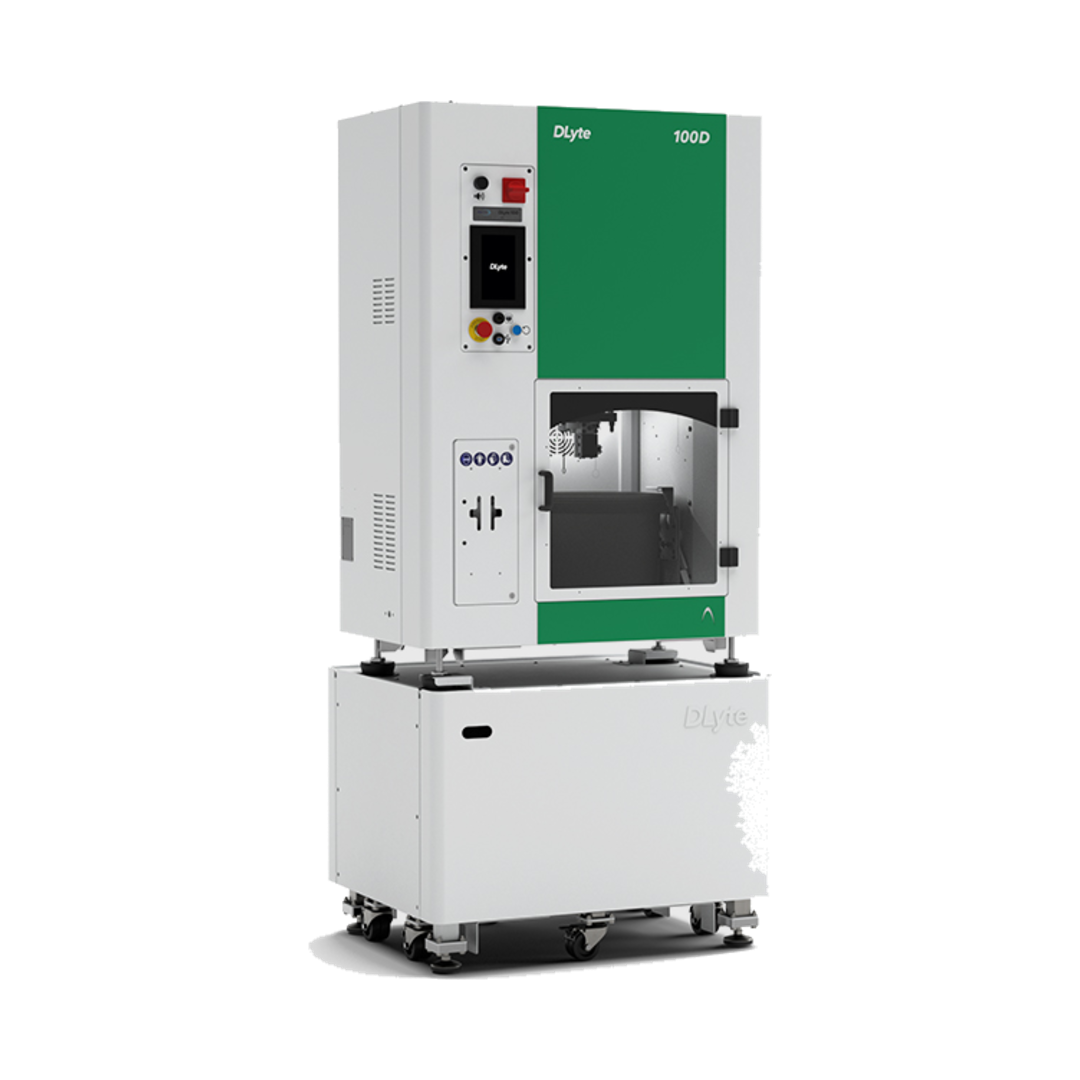

The DLyte 100 is a high-capacity dry electropolishing system for high-volume production. It finishes up to 9 RPDs or 16 bars per cycle, ideal for large labs and milling centers that want automated finishing at scale.
Key benefits:
• High-capacity batches for large labs
• One-step automated finishing
• Sourcing and support through Nowak
Features
- Dry Electropolishing — No Abrasive Media
- Smooths & Shines Without Changing Geometry
- Works on 3D-Printed and Milled Metal
- No Water Recycling or Sludge Treatment Needed
- High-Capacity Drum
- Automatic Conductivity Control
Specs
- Capacity per Cycle: 9 RPDs, 16 crowns or cemented structures, 16 bars or implant bridges, or 50+ abutments
- Work Volume: Up to Ø180 × 80 mm
- Cycle Time: Typically 50–60 minutes
- Frequency Versions: LF (CoCr, stainless steel), HF (titanium, stainless steel) or LF+HF (all three)
- Machine Size: 950 × 1410 × 730 mm (plus support)
- Weight: 217.5 kg (support: 100 kg)
- Power: 5 kW, 220–240 V, single phase
- Air: 4–5 bar, 40 L/min
