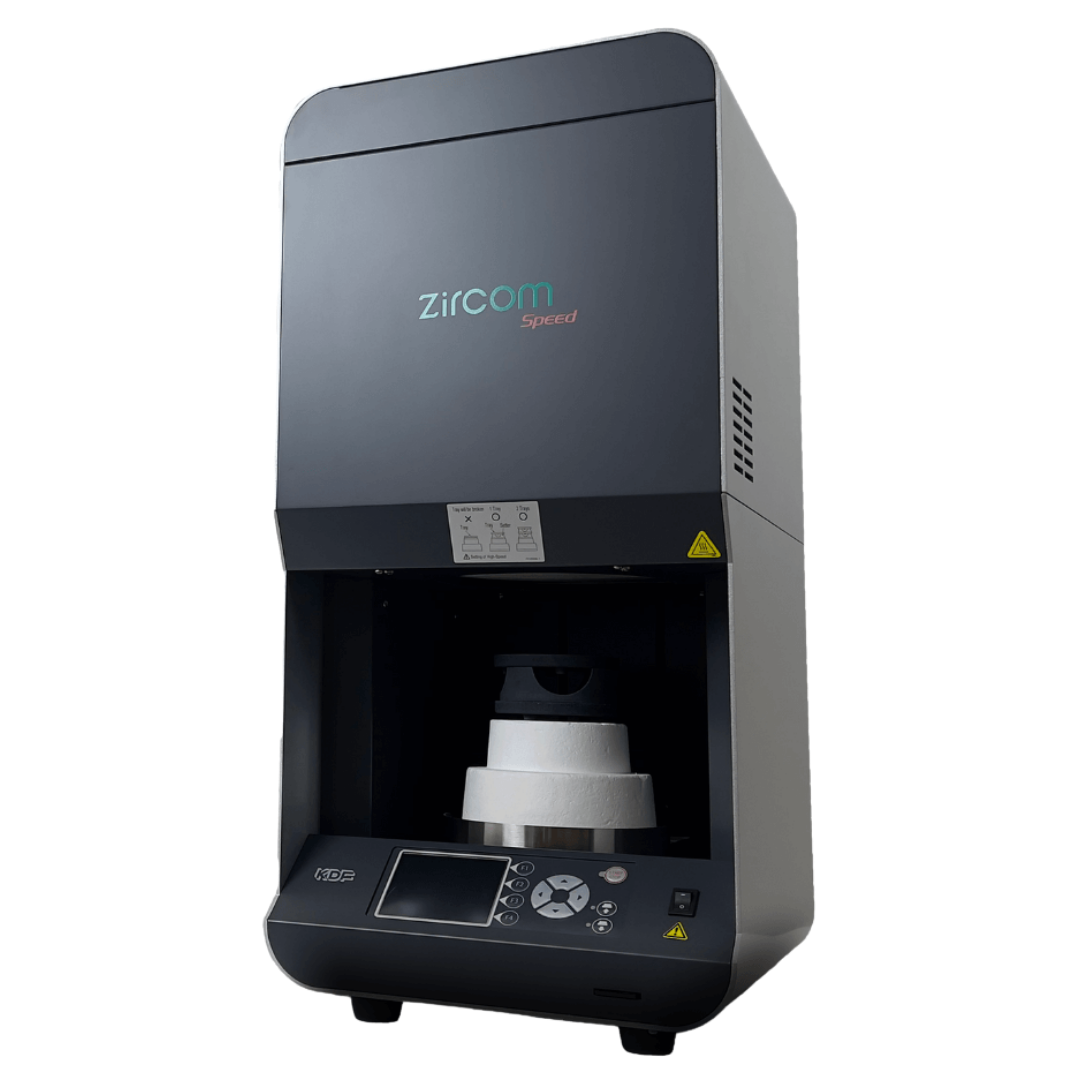

The KDF Zircom is a compact benchtop zirconia sintering furnace with clean, reliable molybdenum disilicide heating. Sintering 50–60 single crowns per load on three ceramic trays, it’s ideal for labs that want consistent, high-capacity overnight zirconia sintering.
Key benefits:
• 50–60 single crowns per load
• Clean, consistent MoSi₂ heating
• Sourcing and support through Nowak
Features
- Molybdenum Disilicide Heating for Clean, Consistent Results
- 3 Stackable Ceramic Trays
- 100 Programmable Programs
- Quick Firing Program
- SD Card for Program Editing & Backup
- Compact Benchtop Design
Specs
- Max Temperature: 1,600 °C (2,912 °F)
- Programs: 100 programs, up to 20 steps each
- Heating Element: Molybdenum disilicide (MoSi₂)
- Firing Platform: Ø95 mm (3.74 in)
- Display: 3.5″ color LCD
- SD Card: Edit programs on a PC, update software, back up programs
- Power: AC 220 V, 50/60 Hz, max 2.5 kVA
- Dimensions (W × H × D): 12 × 25 × 18 in
- Weight: 88 lb (40 kg)
- Capacity: About 50–60 single crowns per load (3 ceramic trays)
- Cycle Time: About 7–10 hours, depending on material
