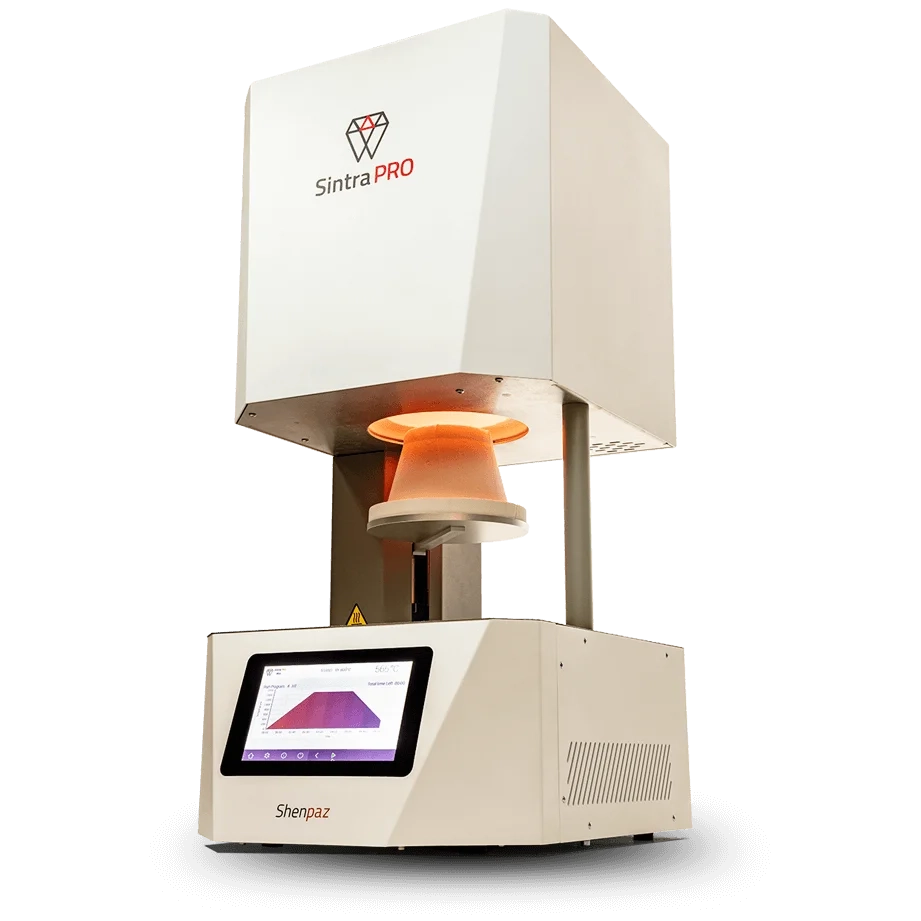

Shenpaz Sintra Pro 120

    What additional products are you interested in? (Optional)

    The Shenpaz Sintra Pro 120 is Shenpaz’s largest sintering furnace, with a 120 mm chamber that fits full 98 mm discs. Holding up to 120 units across three trays with an ultra-fast cycle Shenpaz reports is 30% faster, it’s ideal for high-volume labs and full-arch work.

    Key benefits:
    • Up to 120 units per cycle
    • Fits full 98 mm discs
    • Sourcing and support through Nowak

    Features


    • Up to 120 Units in 3 Stackable Trays
    • Fits Full 98 mm Discs
    • Ultra-Fast Cycle (Shenpaz Reports 30% Faster)
    • 4 MoSi₂ Heating Elements
    • Degassing Function to Protect the Muffle
    • Wi-Fi Remote Monitoring from PC, Phone or Tablet
    • Automatic Recovery After Power Failure

    Specs


    • Max Temperature: 1,800 °C; max sintering temperature 1,650 °C
    • Heating Rate: 1–70 °C/min (depending on chamber temperature)
    • Programs: Unlimited programs with unlimited heating, cooling and holding stages
    • Display: 7″ full-touch LCD with interactive cycle graph
    • Chamber: Cylindrical, Ø120 × 100 mm
    • Capacity: 40 units per tray; up to 120 units in 3 stackable trays
    • Heating Elements: 4 MoSi₂
    • Power: 230 V, 50/60 Hz (20 A circuit); 2.0 kW
    • Dimensions (W × H × D): 45 × 75 × 45 cm
    • Weight: 68 kg
