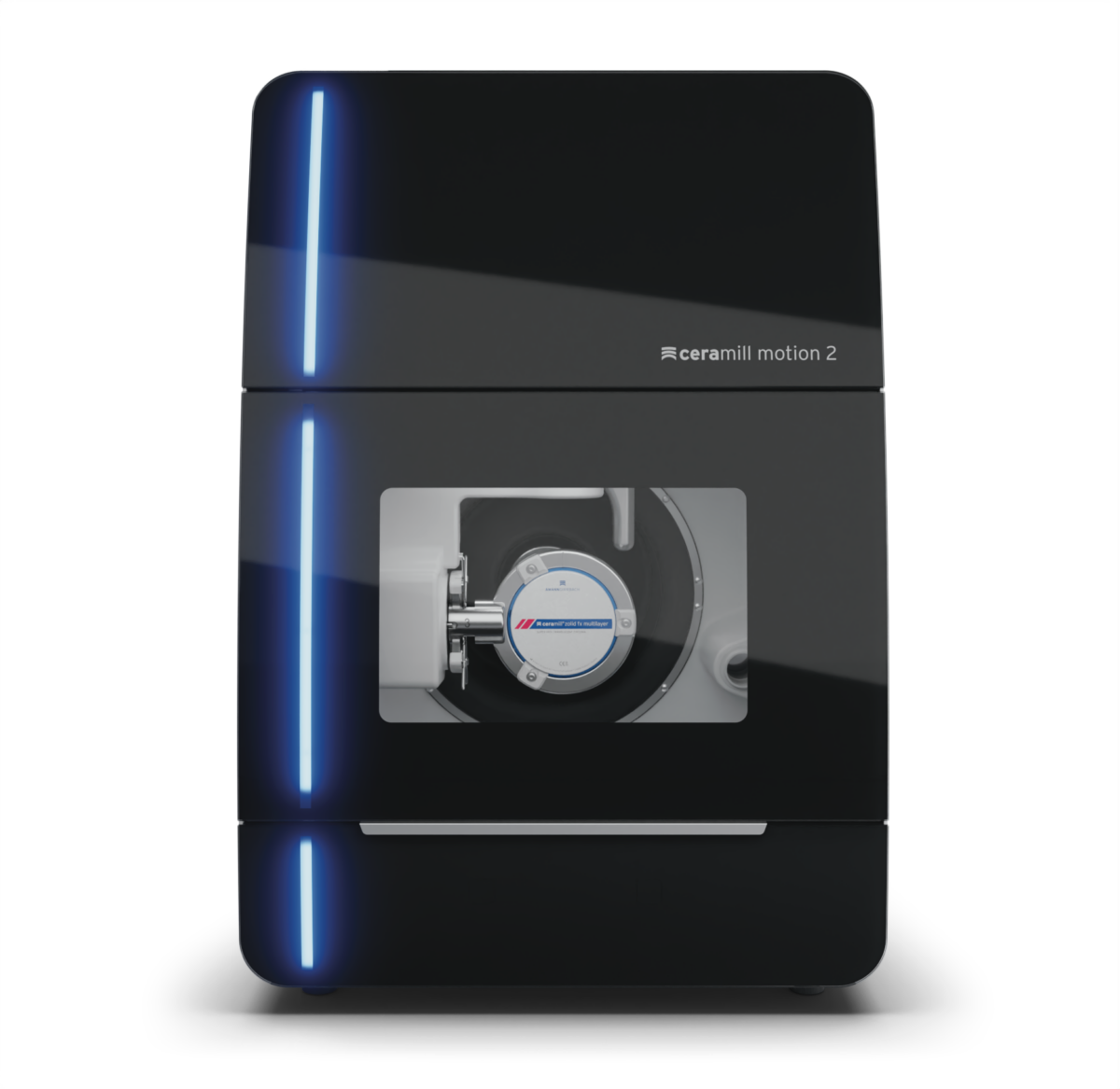

    The Amann Girrbach Ceramill Motion 2 is a compact 5-axis hybrid unit that mills and grinds wet or dry in one machine. Available in DRY, HYBRID and CAPACITY packages, it’s ideal for labs that want a proven, low-vibration workhorse for zirconia, glass ceramics, resins and more.

    Key benefits:
    • Wet and dry processing in one compact unit
    • Proven Amann Girrbach DNA milling strategies
    • Sourcing and support through Nowak

    Features


    • 5-Axis Milling & Grinding
    • Hybrid Wet & Dry Processing
    • 100,000 rpm High-Frequency Spindle
    • 6-Fold Tool Changer with Replacement-Tool Management
    • Low-Vibration, Compact Design
    • DRY, HYBRID and CAPACITY Packages

    Specs


    • Axes: 5
    • Processing: Dry and wet
    • Spindle: 100,000 rpm; 750 W; 9.2 Ncm
    • Collet: 3 mm
    • Tool Changer: 6-fold
    • Materials: Zirconia, polymers, glass and hybrid ceramics, Ceramill Sintron
    • Power: 100–230 V, 50/60 Hz; 250 W consumption
    • Compressed Air: 6 bar, 50 L/min
    • Dimensions (D × W × H): 595 × 530 × 780 mm
    • Weight: 78 kg
