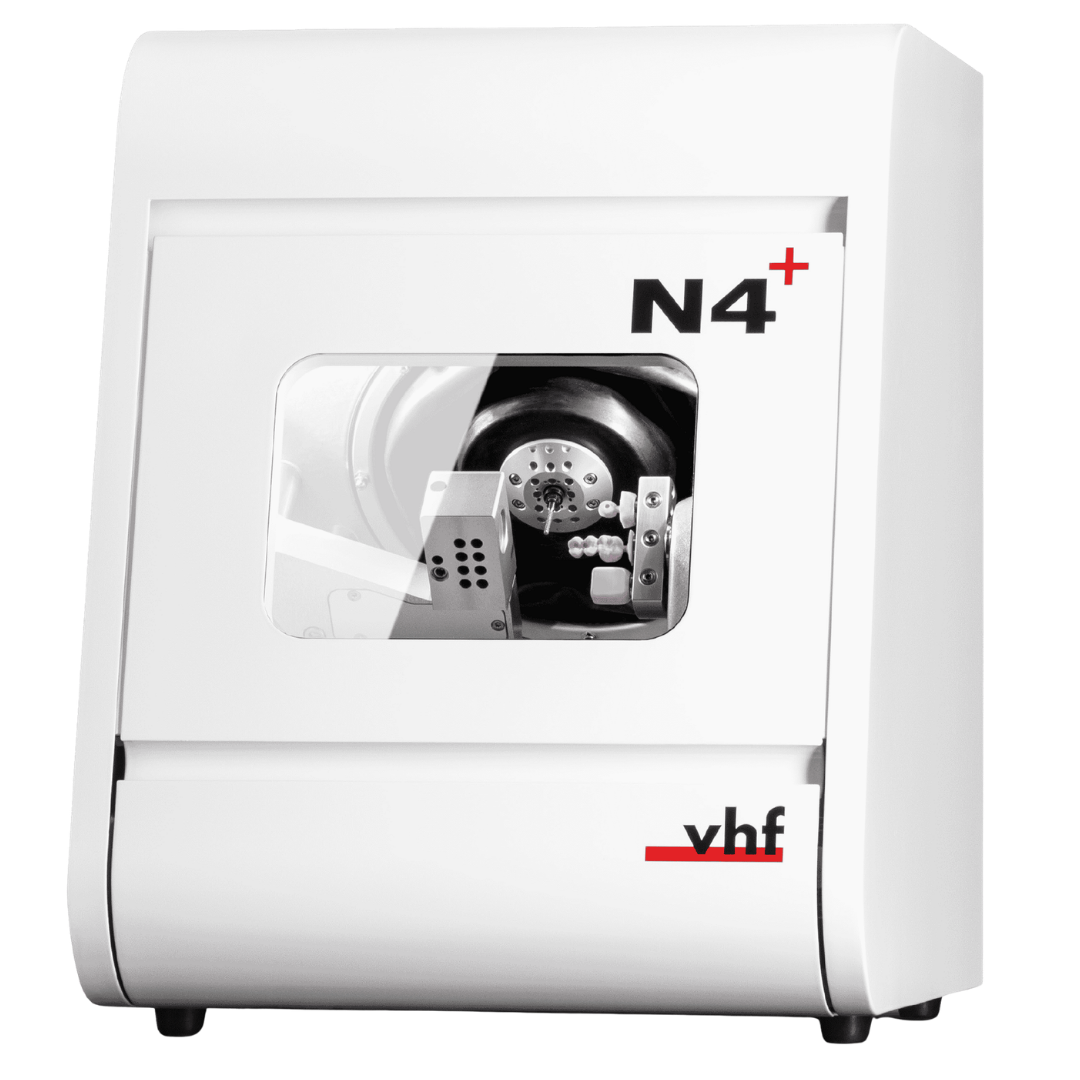

VHF N4+

    What additional products are you interested in? (Optional)

    Categories: ,

    VHF N4+ is a dental lab equipment option for dental labs that want reliable performance and a smooth day-to-day workflow. Ideal for labs focused on accuracy, efficiency, and repeatable outcomes across cases.

    Key benefits:
    • Built for lab production environments
    • Designed to support efficient workflows
    • Backed by Nowak product guidance and support

    Features


    • The essence of wet grinding
    • Tool changes in a flash
    • Outstanding precision
    • Closed fluid circuit
    • For a variety of indications

    Specs


    • Axes: 4 (X, Y, Z plus A-axis, 200° rotation)
    • Repetition Accuracy: ±0.003 mm
    • Spindle: Water-cooled, up to 80,000 rpm; 800 W peak, 600 W (S6), 440 W continuous (S1)
    • Tool Changer: Removable 8-tool magazine with tool measurement and breakage monitoring
    • Tools: 3 mm shank, max. 35 mm total length
    • Blocks: Up to 45 × 20 × 20 mm; up to 3 blocks at once
    • Materials: Glass ceramics, lithium disilicate, titanium, zirconia, composites, plastics
    • Coolant: Integrated 3.5 L tank with activated-carbon filter and flow sensor
    • Compressed Air: 4–8 bar, 25–45 L/min
    • Interfaces: Ethernet (RJ-45), USB; integrated camera
    • CAM Software: vhf dentalcam included
    • Power: 100–240 V, 50/60 Hz, 640 W
    • Dimensions (W × D × H): 364 × 460 × 473 mm
    • Weight: 52 kg
