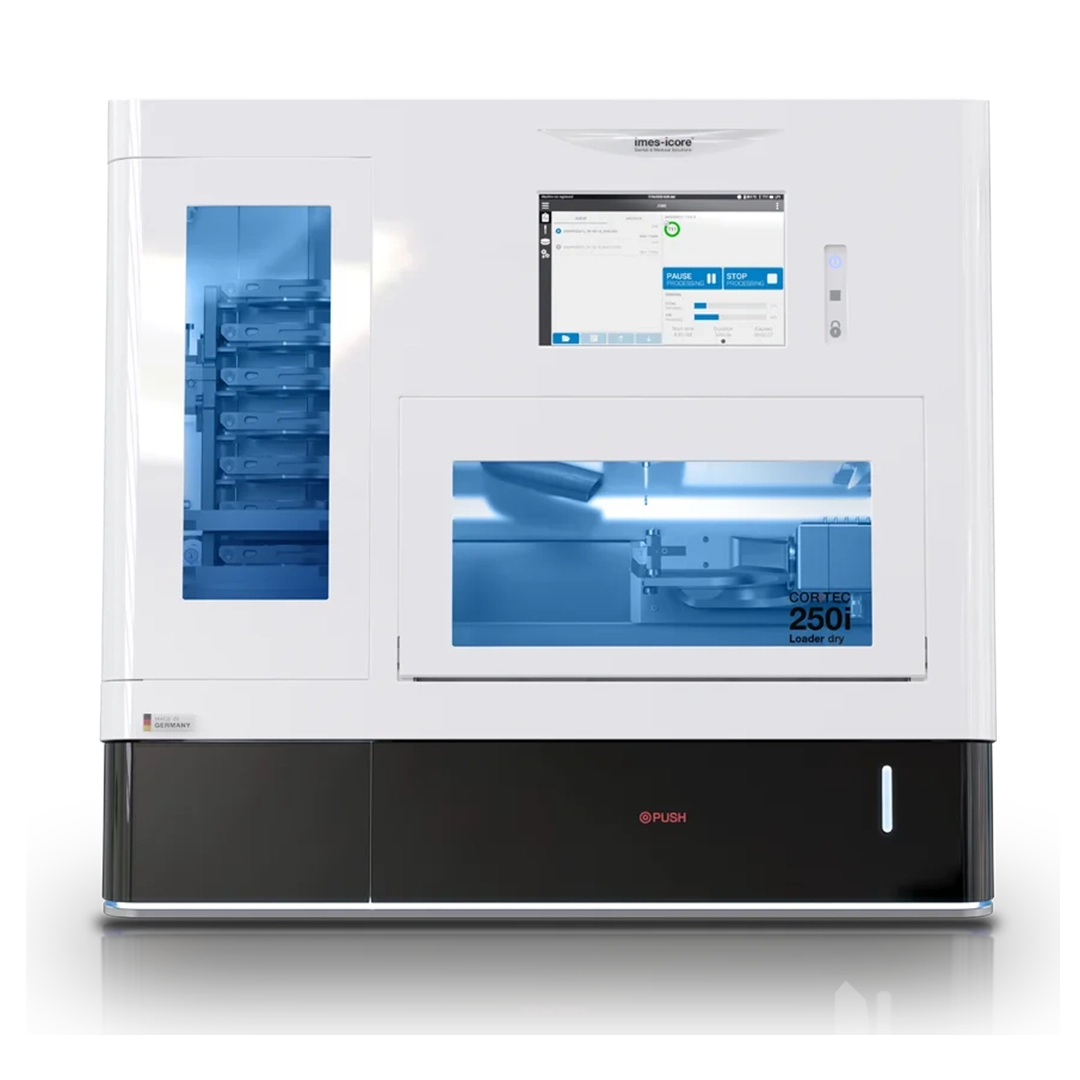

imes-icore CORiTEC 250i Loader Dry

    What additional products are you interested in? (Optional)

    The imes-icore CORiTEC 250i Loader dry is an automated 5-axis dry mill with a 7-position blank changer and 16-position tool changer. It’s ideal for labs that want reliable, economical unattended dry milling of zirconia, PMMA, composites and more.

    Key benefits:
    • Unattended production with a 7-blank loader
    • Economical dry-only automation
    • Sourcing and support through Nowak

    Features


    • 5-Axis Simultaneous Dry Machining
    • 7-Position Automatic Blank Changer
    • 16-Position Tool Changer with Exchangeable Magazine
    • 100,000 rpm High-Frequency Spindle
    • Integrated 2-Fold Ionizer
    • Auto-Calibration, Automated Cleaning & Temperature Compensation
    • 10.1″ Touchscreen with Integrated PC

    Specs


    • Axes: 5 simultaneous; A-axis 360°, B-axis ±30°
    • Processing: Dry
    • Spindle: 750 W, up to 100,000 rpm; 3 mm shank tools
    • Tool Changer: 16 positions
    • Blank Changer: 7 positions
    • Materials: Zirconia, CoCr pre-milled abutments, lithium disilicate, hybrid ceramic, sintered metal, composite, PEEK, PMMA, wax
    • Indications: Full dentures, crowns and bridges, splints, inlays/onlays/veneers
    • Power: 100–240 V, 50/60 Hz, 750 W
    • Compressed Air: 7 bar at 60 L/min
    • Dimensions (W × D × H): 790 × 613 × 724 mm
    • Weight: 110 kg (242.5 lb)
