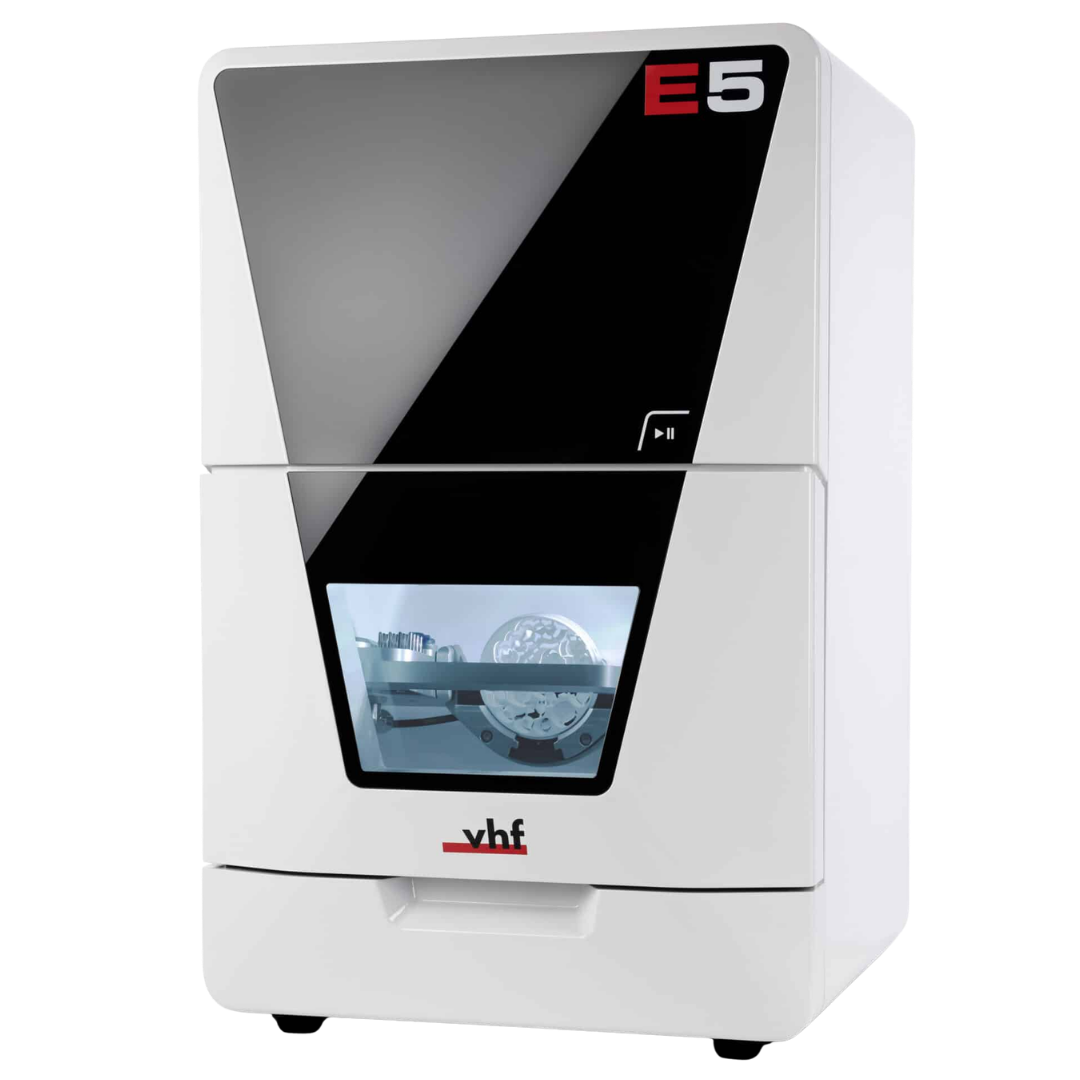

VHF E5 is a dental lab equipment option for dental labs that want reliable performance and a smooth day-to-day workflow. Ideal for labs focused on accuracy, efficiency, and repeatable outcomes across cases.
Key benefits:
• Built for lab production environments
• Designed to support efficient workflows
• Backed by Nowak product guidance and support”
Features
- No Compressed Air Required
- 24-Month Guarantee
- 3 μm Repetition Accuracy
- Cast Aluminum Body for Low Vibration in Operation
- CAM Software Included
- Automatic Tool Changer
Specs
- Millable Materials: Composites, plastics/wax, zirconia, CoCr sintered metals Discs, height 10–40 mm, diameter 98.5 mm Blocks up to 40 × 20 × 20 mm (block holder required)
- Indications: Crowns, bridges, inlays, onlays, veneers, occlusal splints, full dentures, denture frameworks, implant bars, abutments, screw retained crowns, screw retained bridges, surgery guides, primary crowns, secondary crowns, model plates, model tooth dies
- Holder systems: Holder for 98.5 mm discs (integrated) · holder for 110 mm discs (optional) · block holder (optional) · Ivotion1 accessory kit (optional)
- Number of axes: 5
- Lighting: RGB LED lighting with status indication
- Spindle Speed: Up to 60,000 rpm
- Spindle Power: Peak power (Pmax): 800 watts · nominal power (S6): 400 watts · continuous power (S1): 300 watts
- Spindle Bearing: 2-fold hybrid ceramic ball bearing
- Processing Modes: Dry
- Power supply: 100–240 volts · 50/60 Hz, 500 watts
- Extraction system: Extraction filter class M, 2,500 l/min extraction capacity at 200 hPa
- Operating temperature: Between 10 °C and 35 °C
