imes-icore CORiTEC 250i Pro+

    What additional products are you interested in? (Optional)

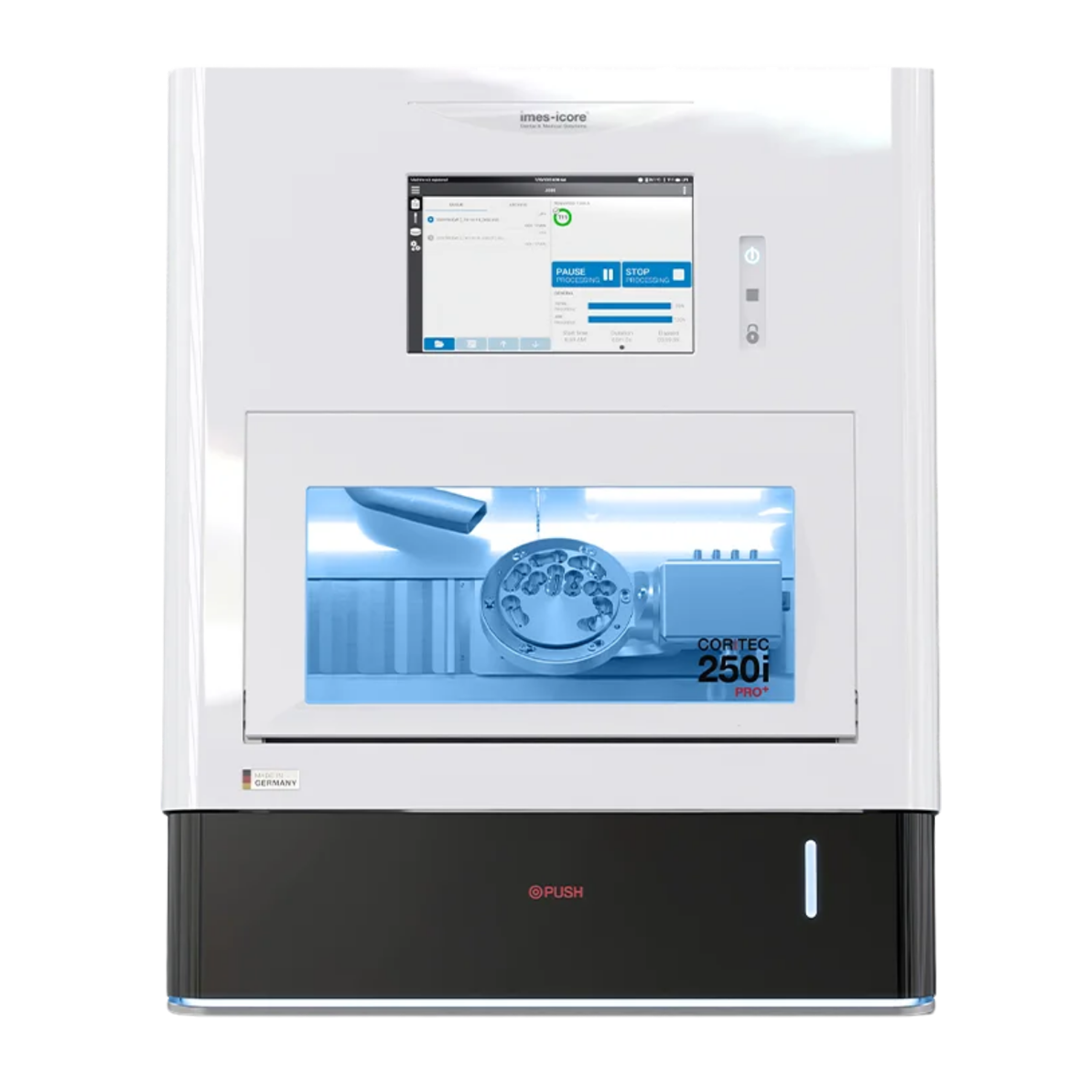

    The imes-icore CORiTEC 250i PRO+ is a compact 5-axis wet and dry mill with a 6 mm-shank spindle for metals as well as ceramics and polymers. Its mono-block cast body and zero-point clamping make it ideal for labs that want to mill titanium, CoCr and zirconia on one machine.

    Key benefits:
    • Mills titanium and CoCr as well as zirconia and polymers
    • Wet and dry in a compact footprint
    • Sourcing and support through Nowak

    Features


    • 5-Axis Simultaneous Wet & Dry Machining
    • 1.4 kW Spindle up to 60,000 rpm (6 mm Shank)
    • 10-Fold Tool Changer with Tool Length Control
    • Zero-Point Clamping System
    • Mono-Block Cast Body for Low Vibration
    • 10.1″ Full-HD Touchscreen, HD Camera & RGB Status Lighting
    • 2-Fold Ionizer, Auto-Calibration & Automated Cleaning

    Specs


    • Axes: 5 simultaneous; A-axis 360°, B-axis ±30°
    • Processing: Wet and dry; 3.7 L coolant tank
    • Spindle: 1.4 kW, air-cooled, up to 60,000 rpm; 6 mm shaft
    • Tool Changer: 10-fold
    • Materials: Zirconia, glass ceramic, lithium disilicate, hybrid ceramic, titanium, CoCr, composite, PEEK, PMMA, wax
    • Indications: Crowns, bridges, abutments, full dentures, splints, bars
    • Power: 100–240 V, 50/60 Hz
    • Compressed Air: 7 bar at 60 L/min
    • Dimensions (W × D × H): 591 × 613 × 724 mm
    • Weight: 95 kg
