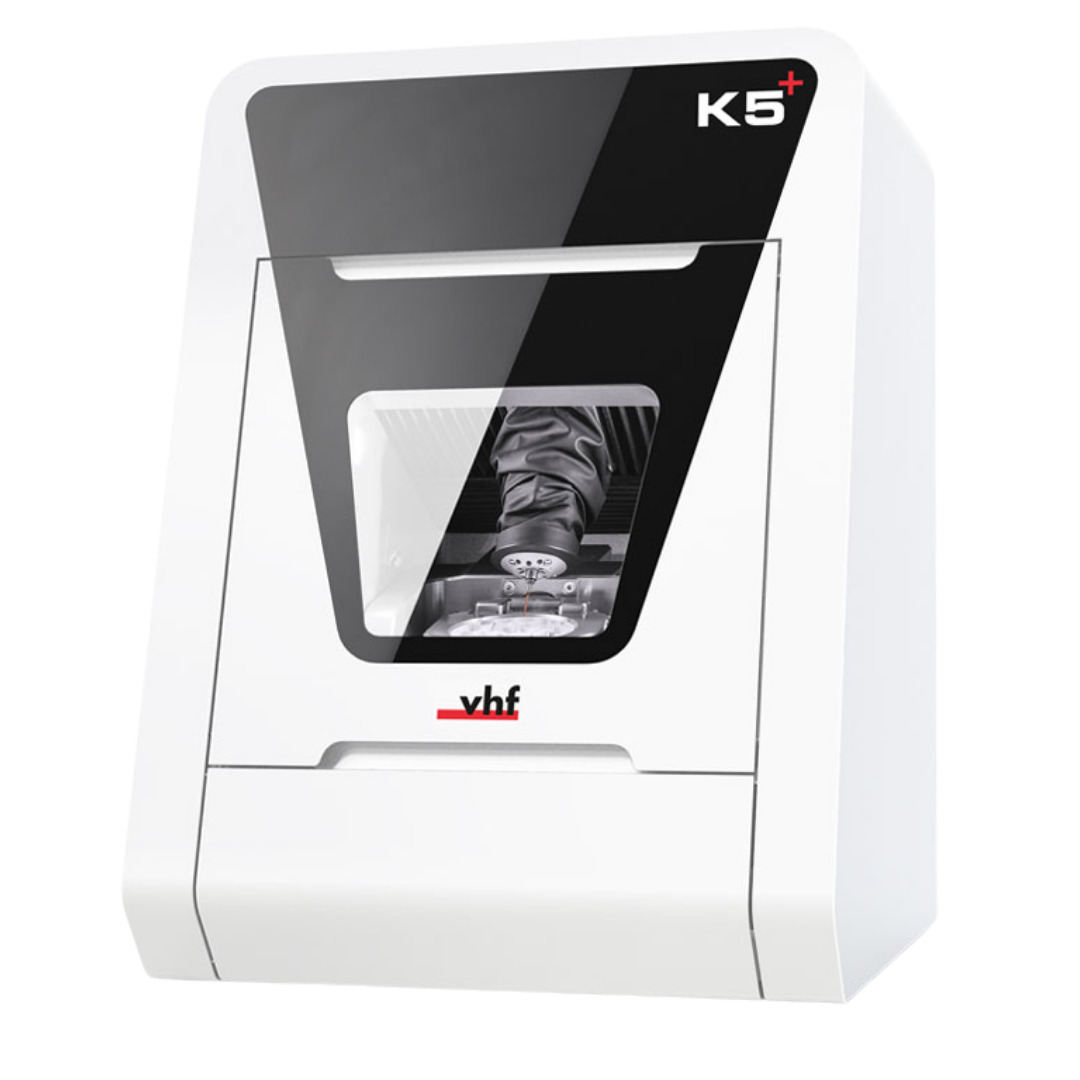

VHF K5+

    What additional products are you interested in? (Optional)

    Categories: ,

    VHF K5+ is a dental lab equipment option for dental labs that want reliable performance and a smooth day-to-day workflow. Ideal for labs focused on accuracy, efficiency, and repeatable outcomes across cases.

    Key benefits:
    • Built for lab production environments
    • Designed to support efficient workflows
    • Backed by Nowak product guidance and support

    Features


    Exceptional precision

    • Restorations in ultra HD
    • Premium spindle with four-fold ball bearing made of hybrid ceramic for the highest concentricity
    • 3 μm repetition accuracy

    Tremendous stability

    • Mills the toughest materials on the market, incl. CoCr
    • Powerful 820 watt (peak) spindle and 60,000 rpm
    • Heavy industrial quality for maximum rigidity
    • Solid cast body for the lowest vibrations

    Absolute independence

    • Sheer unlimited material accessibility in 98 mm disc format, separate block and prefab abutment holders available
    • Covers the broadest range of indications, due to ± 35° rotation angle in the 5th axis, and blanks up to 40 mm thickness (metals up to 18 mm)

    Outstanding reliability

    • 100 % engineered and manufactured in Germany
    • Sophisticated sealing air concept to protect mechanics, electronics, and spindle
    • 24-month warranty

    Highly economical

    • Ionizer and improved air circulation for easy machine cleaning
    • DIRECTDISC Technology for tool-free disc fixation – insert your workpieces in seconds
    • Automatic changer for 16 tools
    • Webcam in the working chamber for remote monitoring and service
    • Ethernet interface for stable connection
    • Very easy operation via DENTALCAM software with DIRECTMILL – included in scope of delivery and without license fees

    Specs


    • Axes: 5 (A-axis 360° continuous; B-axis ±35°)
    • Spindle: Up to 60,000 rpm; 820 W peak, 680 W (S6), 550 W continuous (S1)
    • Tool Changer: 16-tool magazine plus 30-tool Administrated Tool Board
    • Tools: 3 mm shank, max. 40 mm total length
    • Discs: Ø98.5 mm, 10–40 mm height (CoCr up to 18 mm)
    • Blocks: Up to 45 × 20 × 20 mm; 3-fold block holder included
    • Materials: Plastics, wax, zirconia, composites, CoCr, model plaster
    • Compressed Air: 50–64 L/min at 6–8 bar (80–102 L/min with ionization)
    • Interfaces: Ethernet (RJ-45), USB
    • Power: 100–240 V, 50/60 Hz, 640 W
    • Dimensions (W × D × H): 455 × 550 × 630 mm
    • Weight: 91 kg
